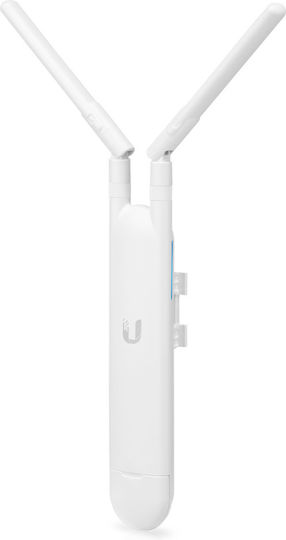

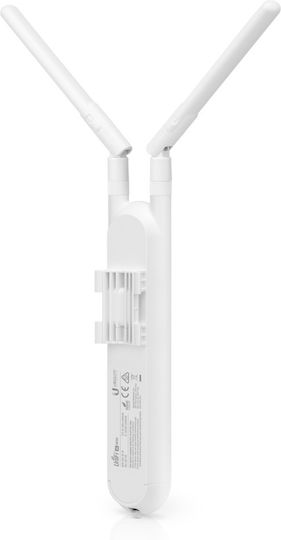

Ubiquiti UniFi AC Mesh Access Point Wi‑Fi 5 Dual Band (2.4 & 5GHz) για Εξωτερική τοποθέτηση

Επεκτείνετε το δίκτυο Wi-Fi σε εξωτερικούς χώρους με το UniFi® Mesh Access Point, μέρος του ασύρματου συστήματος Ubiquiti Networks® UniFi Enterprise. Το UAP-AC-M είναι υψηλής απόδοσης, εξωτερικό, 2×2 MIMO, 802.11ac access point διπλής ζώνης, ικανό για ταχύτητες έως 1167 Mbps. Διαθέτει δύο βύσματα RP-SMA, τα οποία μπορούν να χρησιμοποιηθούν με τις ενσωματωμένες κεραίες omni-directional διπλής ζώνης.

Τεχνικά Χαρακτηριστικά

Διαστάσεις: 353 x 46 x 34.4 mm
Βάρος: 152 gr

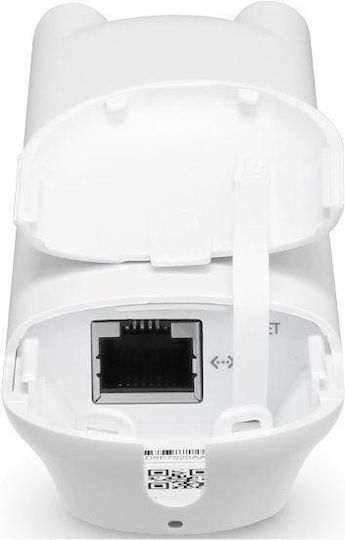

Networking interface (1) GbE port
Management interface EthernetBluetooth
Power method 24V passive PoE (Pairs 4, 5+; 7, 8 return)PoE alternative A (Pairs 1, 2+; 3, 6 return)
Power supply Gigabit PoE adapter 24V, 0.5A*
Supported voltage range 44—57V DC
Max. power consumption 8.5W
Max. TX power2.4 GHz5 GHz 20 dBm20 dBm
MIMO2.4 GHz5 GHz 2 x 22 x 2
Throughput rate2.4 GHz5 GHz 300 Mbps867 Mbps
Antenna gain2.4 GHz5 GHz 3 dBi4 dBi
Button Factory reset
Mounting Wall/pole/fast-mount (Included)
Operating temperature -30 to 70° C (-22 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC, UKCA

Τεχνικά Χαρακτηριστικά

Διαστάσεις: 353 x 46 x 34.4 mm
Βάρος: 152 gr
Networking interface (1) GbE port
Management interface EthernetBluetooth
Power method 24V passive PoE (Pairs 4, 5+; 7, 8 return)PoE alternative A (Pairs 1, 2+; 3, 6 return)
Power supply Gigabit PoE adapter 24V, 0.5A*
Supported voltage range 44—57V DC
Max. power consumption 8.5W
Max. TX power2.4 GHz5 GHz 20 dBm20 dBm
MIMO2.4 GHz5 GHz 2 x 22 x 2
Throughput rate2.4 GHz5 GHz 300 Mbps867 Mbps
Antenna gain2.4 GHz5 GHz 3 dBi4 dBi
Button Factory reset
Mounting Wall/pole/fast-mount (Included)
Operating temperature -30 to 70° C (-22 to 158° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC, UKCA

– Διαστάσεις: 353 x 46 x 34.4 mm

– Βάρος: 152 gr

– Networking interface (1) GbE port

– Management interface EthernetBluetooth

– Power method 24V passive PoE (Pairs 4, 5+; 7, 8 return)PoE alternative A (Pairs 1, 2+; 3, 6 return)

– Power supply Gigabit PoE adapter 24V, 0.5A*

– Supported voltage range 44—57V DC

– Max. power consumption 8.5W

– Max. TX power2.4 GHz5 GHz 20 dBm20 dBm

– MIMO2.4 GHz5 GHz 2 x 22 x 2

– Throughput rate2.4 GHz5 GHz 300 Mbps867 Mbps

– Antenna gain2.4 GHz5 GHz 3 dBi4 dBi

– Button Factory reset

– Mounting Wall/pole/fast-mount (Included)

– Operating temperature -30 to 70° C (-22 to 158° F)

– Operating humidity 5 to 95% noncondensing

– Certifications CE, FCC, IC, UKCA

– Διαστάσεις: 353 x 46 x 34.4 mm

– Βάρος: 152 gr

– Networking interface (1) GbE port

– Management interface EthernetBluetooth

– Power method 24V passive PoE (Pairs 4, 5+; 7, 8 return)PoE alternative A (Pairs 1, 2+; 3, 6 return)

– Power supply Gigabit PoE adapter 24V, 0.5A*

– Supported voltage range 44—57V DC

– Max. power consumption 8.5W

– Max. TX power2.4 GHz5 GHz 20 dBm20 dBm

– MIMO2.4 GHz5 GHz 2 x 22 x 2

– Throughput rate2.4 GHz5 GHz 300 Mbps867 Mbps

– Antenna gain2.4 GHz5 GHz 3 dBi4 dBi

– Button Factory reset

– Mounting Wall/pole/fast-mount (Included)

– Operating temperature -30 to 70° C (-22 to 158° F)

– Operating humidity 5 to 95% noncondensing

– Certifications CE, FCC, IC, UKCA

– Τοποθέτηση: Εξωτερική
– Συχνότητα: Dual Band (2.4 & 5GHz)
– Μέγιστη Ταχύτητα WLAN: 1300 Mbps
– Γενιά Wi-Fi: Wi‑Fi 5
– Πρότυπα Δικτύωσης IEEE: 802.11a, 802.11 b/g/n, 802.11ac
– Θύρες RJ45: 1
– Ταχύτητα LAN: 1000 Mbps
– WiFi Mesh Network: Ναι
– Ethernet Backhaul: Όχι
– Συσκευασία: Μονό Kit
