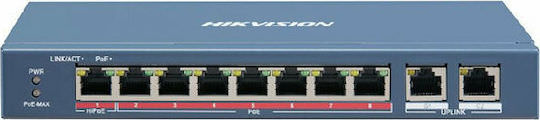

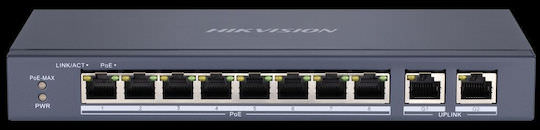

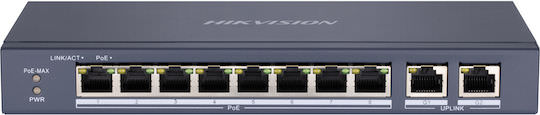

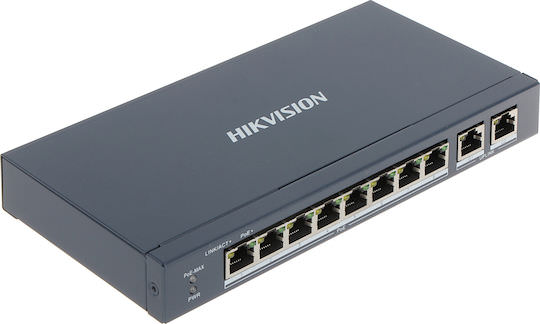

Hikvision DS-3E0310P-E/M Unmanaged L2 PoE+ Switch με 10 Θύρες Ethernet

Ο Hikvision DS-3E0310P-E/M είναι ένας unmanaged Layer 2 PoE+ switch με 10 θύρες Ethernet, ιδανικός για συστήματα παρακολούθησης και δικτυακές εφαρμογές. Διαθέτει 8 PoE+ θύρες με συνολική ισχύ έως 123W, υποστηρίζοντας τροφοδοσία και δεδομένα για IP κάμερες και άλλες συσκευές μέσω ενός καλωδίου. Περιλαμβάνει 2 επιπλέον θύρες uplink για σύνδεση με άλλες συσκευές δικτύου. Με στιβαρή κατασκευή και εύκολη εγκατάσταση, είναι ιδανική επιλογή για μικρομεσαία δίκτυα.

Τεχνικά Χαρακτηριστικά

8 x 10/100 Mbps PoE ports
2 x Gigabit (1000 Mbps) uplink ethernet ports
Σύμφωνο με τα Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.
Extend On : Transmission Range 300m, Speed rate 10 Mb/s
Extend Off : Transmission Range 100 m, Speed rate 100 Mb/s
Total PoE Power: 60 Watts
Max. Power per PoE Port: 30Watts
6 KV surge protection for PoE ports.
Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Supports store-and-forward
MAC Address Table: 16 K
Switching Capacity: 5.6 Gbps
Packet Forwarding Rate: 4.1664 Mpps
Internal Cache: 4 Mbits
High Priority PortsPorts: N/A
Solid high-strength metal shell.
Reliable fan-free design.
Power Consumption in Idle: < 5 W
Power Supply: 48 VDC, 1.35 A
Max. Power Consumption: 65 W
Διαστάσεις: 217.6 mm × 103.35 mm × 27.8 mm

Τεχνικά Χαρακτηριστικά

8 x 10/100 Mbps PoE ports

2 x Gigabit (1000 Mbps) uplink ethernet ports
Σύμφωνο με τα Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.

Extend On : Transmission Range 300m, Speed rate 10 Mb/s

Extend Off : Transmission Range 100 m, Speed rate 100 Mb/s
Total PoE Power: 60 Watts
Max. Power per PoE Port: 30Watts
6 KV surge protection for PoE ports.
Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.
Supports store-and-forward
MAC Address Table: 16 K
Switching Capacity: 5.6 Gbps
Packet Forwarding Rate: 4.1664 Mpps
Internal Cache: 4 Mbits
High Priority PortsPorts: N/A
Solid high-strength metal shell.
Reliable fan-free design.
Power Consumption in Idle: < 5 W
Power Supply: 48 VDC, 1.35 A
Max. Power Consumption: 65 W
Διαστάσεις: 217.6 mm × 103.35 mm × 27.8 mm

– 8 x 10/100 Mbps PoE ports

– 2 x Gigabit (1000 Mbps) uplink ethernet ports

– Σύμφωνο με τα Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

– Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.

– Extend On : Transmission Range 300m, Speed rate 10 Mb/s

– Extend Off : Transmission Range 100 m, Speed rate 100 Mb/s

– Total PoE Power: 60 Watts

– Max. Power per PoE Port: 30Watts

– 6 KV surge protection for PoE ports.

– Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

– Supports store-and-forward

– MAC Address Table: 16 K

– Switching Capacity: 5.6 Gbps

– Packet Forwarding Rate: 4.1664 Mpps

– Internal Cache: 4 Mbits

– High Priority PortsPorts: N/A

– Solid high-strength metal shell.

– Reliable fan-free design.

– Power Consumption in Idle: < 5 W

– Power Supply: 48 VDC, 1.35 A

– Max. Power Consumption: 65 W

– Διαστάσεις: 217.6 mm × 103.35 mm × 27.8 mm

– 8 x 10/100 Mbps PoE ports

– 2 x Gigabit (1000 Mbps) uplink ethernet ports

– Σύμφωνο με τα Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

– Up to 300 m Long Range PoE Transmission. The distance between IPCs and switch can reach maximum 300 meters.

– Extend On : Transmission Range 300m, Speed rate 10 Mb/s

– Extend Off : Transmission Range 100 m, Speed rate 100 Mb/s

– Total PoE Power: 60 Watts

– Max. Power per PoE Port: 30Watts

– 6 KV surge protection for PoE ports.

– Design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.

– Supports store-and-forward

– MAC Address Table: 16 K

– Switching Capacity: 5.6 Gbps

– Packet Forwarding Rate: 4.1664 Mpps

– Internal Cache: 4 Mbits

– High Priority PortsPorts: N/A

– Solid high-strength metal shell.

– Reliable fan-free design.

– Power Consumption in Idle: < 5 W

– Power Supply: 48 VDC, 1.35 A

– Max. Power Consumption: 65 W

– Διαστάσεις: 217.6 mm × 103.35 mm × 27.8 mm

Specifications
Χαρακτηριστικά Δικτύου
– Τύπος: Unmanaged
– Layer: L2
– PoE: Ναι
Τεχνικά Χαρακτηριστικά
– Συνδέσεις Ethernet: 10 Port
– Ταχύτητα Θυρών Ethernet: 100 Mbps, 1000 Mbps
– Ταχύτητα Μεταγωγής: 5,6 Gbps
– Πίνακας Διευθύνσεων MAC: 16000 entries
– Τοποθέτηση σε Rack: Όχι
